Seeeduino XIAO SAMD21G18 Microcontroller Development Board Type-C Interface for Arduino IDE
Feature:
This item carries powerful CPU ARM Cortex-M0+ 32bit 48MHz microcontroller (SAMD21G18), which is three times than for Arduino UNO and for Arduino Nano. In addition, this for Arduino IDE compatible board Xiao is also equipped with 256KB flash memory and 32KB SRAM.

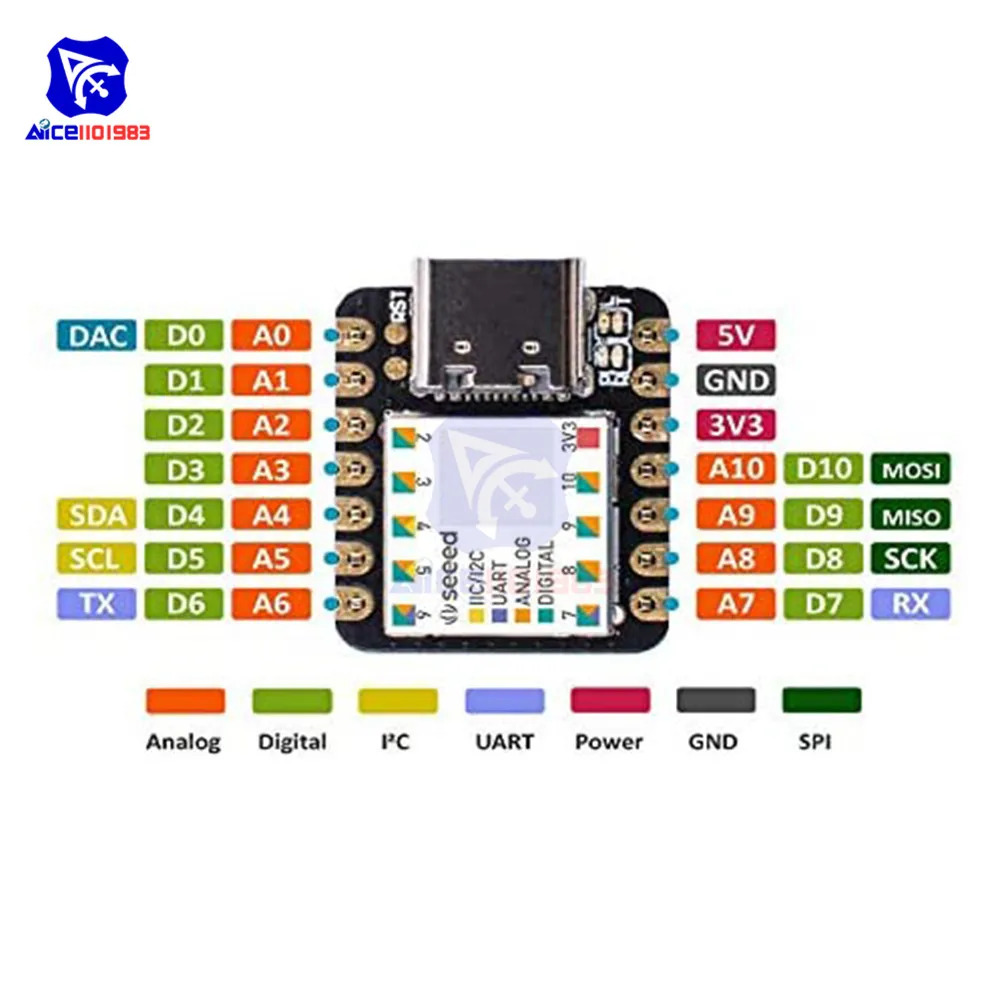

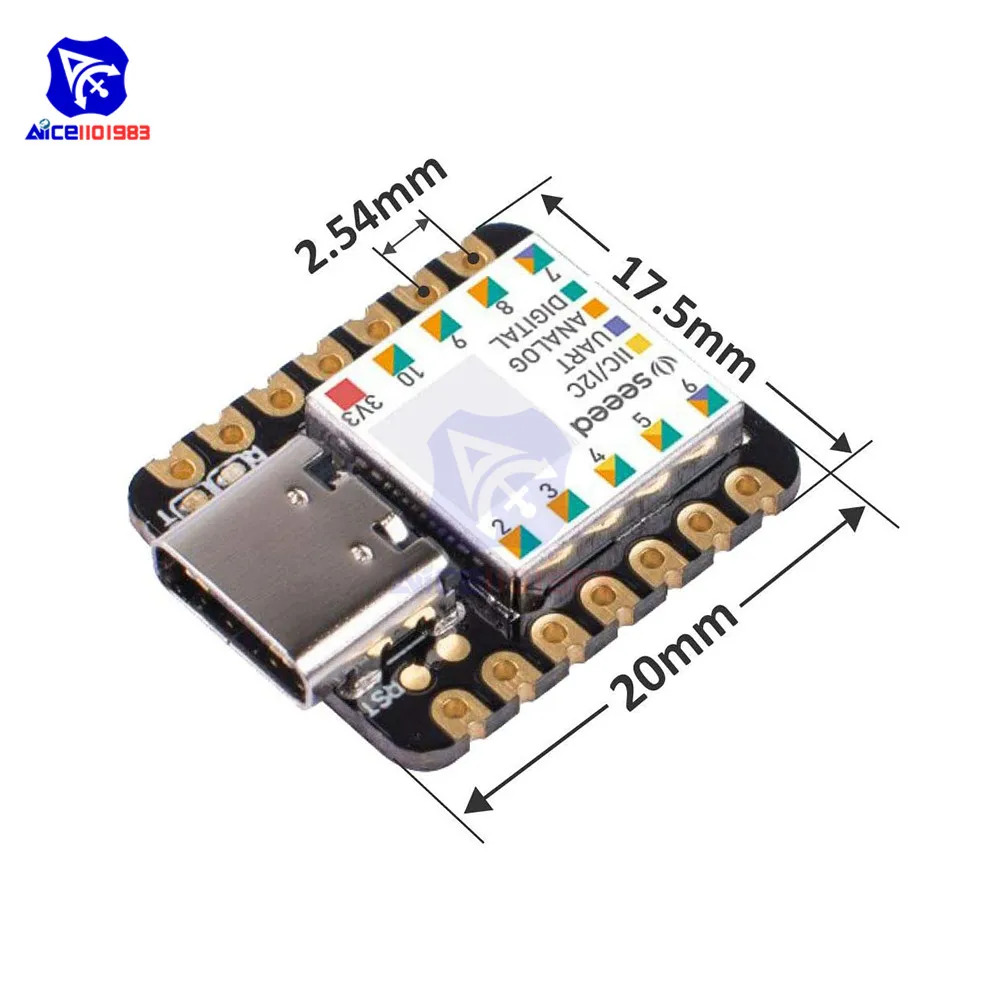

There is 14 GPIO PINs, which can be used for 11 analog PINs, 11 digital PINs, 1 I2C interface, 1 UART interface, and 1 SPI interface in such a tiny size - only 20mm*17.5mm.
The development board is perfectly suitable for Arduino IDE, you can easily develop some small projects with the help of the large and comprehensive for Arduino library. As it has a 2.54mm pin pitch, it is a microcontroller that can be used even when inserted into a breadboard.
It supports the USB Type-C interface which can supply power and download code. There are power pads at the back of the XIAO which support battery and make it designed for wearable devices to become realistic.
On the other hand, this little board has good performance in processing but needs less power. As a matter of fact, it is designed in a tiny size and can be used for Arduino wearable devices and small projects.
Specification:
Microcontroller: ATSAMD21
Flash memorry: 256KB
SRAM EEPROM: 32KB-
Frequency: 48MHz
Size: 23.5x17.5mm
I/O: USB Type-C
Application:
Wearable devices
Rapid prototyping (directly attached to the expanded PCB as a minimal system)
Perfect for all the projects need mini arduino
DIY keyboard
USB development (USB to multi-channel TTL/USB host mode, etc.)
A scenario where you need to read multiple mock values The DAC output
Package Included:

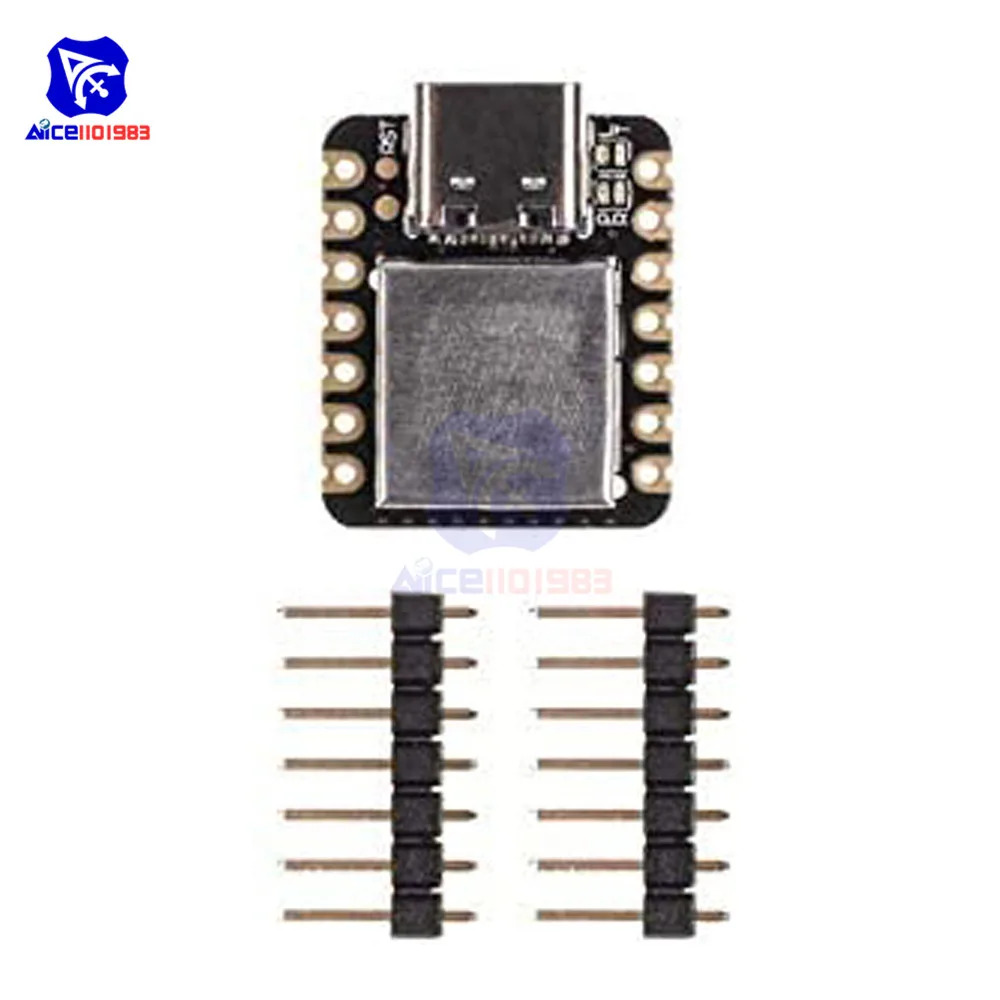

1 * Microcontroller SAMD21 Development for Arduino
