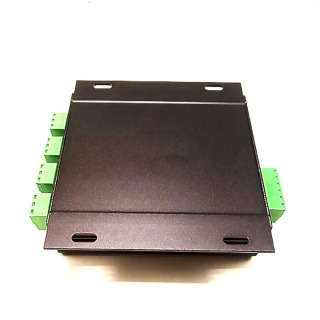

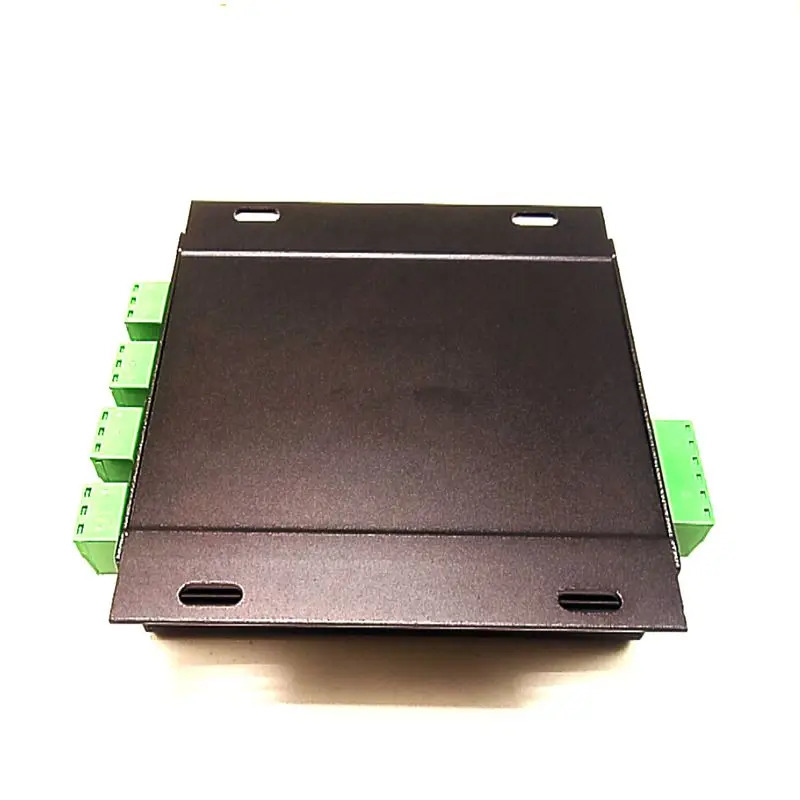

Релейный модуль сети промышленного класса 4, реле Ethernet, удаленный сетевой коммутатор, 4-полосный изолированный вход

0/0

Есть в наличии: 999 шт.
Артикул:	AE-32878473705

544 000 UZS

The power supply is EU plug

Equipment introduction

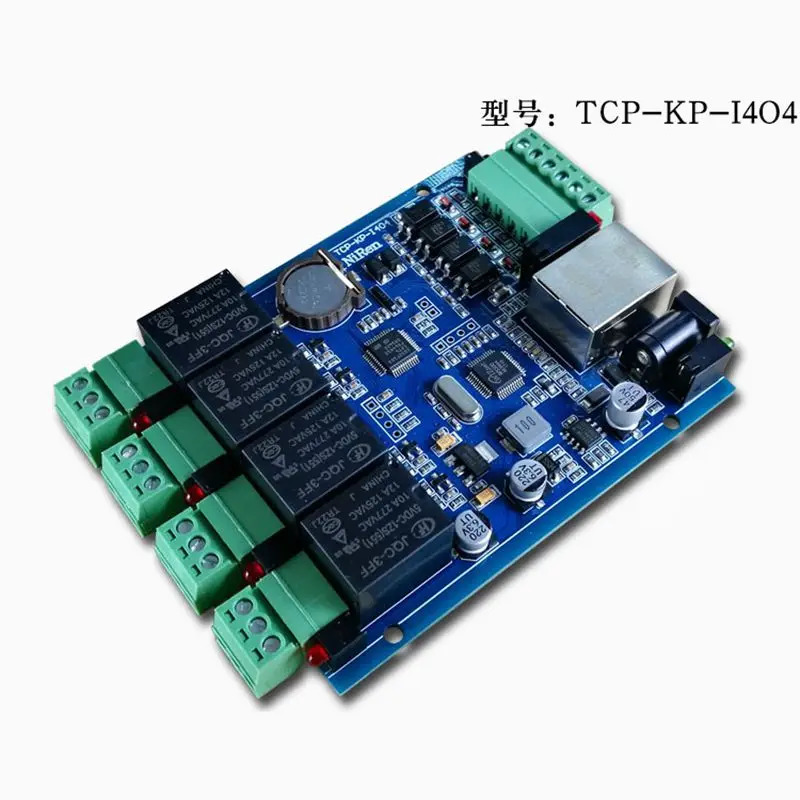

The TCP-KP-I404 network relay is an IoT remote control device introduced by Clayman Technology. It can realize remote control and data acquisition of TCP network. The equipment adopts industrial-grade design scheme, equipped with 32-bit ARM processor and 10/100M Ethernet network chip. It has the characteristics of fast speed, strong computing power, high stability and strong anti-interference ability. Users can rest assured to use in industrial environment. The device supports 4 relay outputs and 4 isolated inputs. The relay supports real-time control, delay control and input-output linkage control, daily timing control and custom date control, etc. It is suitable for use in more different occasions and meets the requirements of more users. Input interface status supports passive upload and active timing upload.

Example of control instructions.

The secondary development is simple and convenient. The parameter setting, relay control, and input interface status are all controlled by the AT command. The AT command is in the ACSII format, ending with a carriage return line feed, for example:

effect	Computer sending	Network relay reply
Relay OUT1 is connected in real time	AT+STACH1=1	OK
Relay OUT1 is disconnected in real time	AT+STACH1=0	OK
The relay OUT is pulled in and the delay is 10 seconds.	AT+STACH1=1,10	OK
The relay OUT is disconnected and the delay is 10 seconds.	AT+STACH1=0,10	OK
Read relay OUT1 real-time status	AT+STACH1=?	+STACH1:1，10 (sucking state, disconnected after 10 seconds) +STACH1:0，10 (disconnected state, pull in after 10 seconds)
Read the input interface IN1 real-time status	AT+OCCH1=?	+OCCH1:1 (with input status) +OCCH1:0 (no input status)

For a more detailed description of the AT command, please see "TCP-KP-C Series Network Relay AT Command Manual"

special function,

1. Relay real-time control, command response speed is fast;

2. Relay delay control, accurate delay, maximum support 99999 seconds delay;

3 Each relay supports 10 daily cycle control time points.

4. Each relay supports 10 custom date control time points.

5. The relay status supports power-down save and power-on recovery.

6. Input and output linkage supports real-time linkage, jog linkage and contact linkage.

7. Input interface status supports passive instruction reading and active timing upload.

8. The network supports four modes: TCP_Server, TCP_Client, UDP, and UDP_Server.

9. Static IP can be set or automatically obtained through DHCP.

10. Support 5 connections in TCP_Server mode.

11. Support DNS domain name resolution, access to remote servers.

12. Support network registration package for server registration and authentication.

13. Support network heartbeat packets, the network automatically reconnects when there is no response timeout.

14. The device firmware can be upgraded via the network and customized without returning to the factory.

15. With the factory reset button, the device parameters are restored to the factory state with one button.

16. The parameter is saved after power-off. It does not need to be reset after power-on.

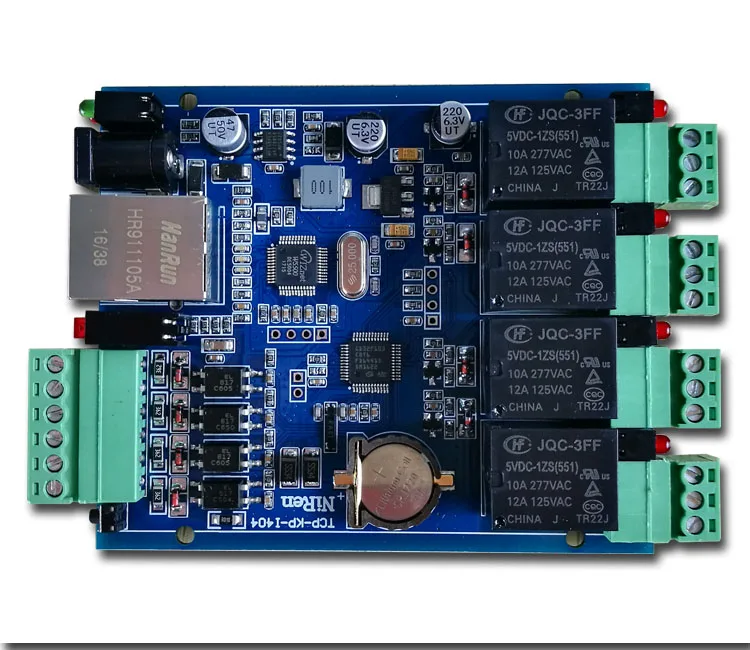

Equipment characteristics

System performance

1. Processor (CPU): 32-bit ARM core

2. Working frequency: 72MHz

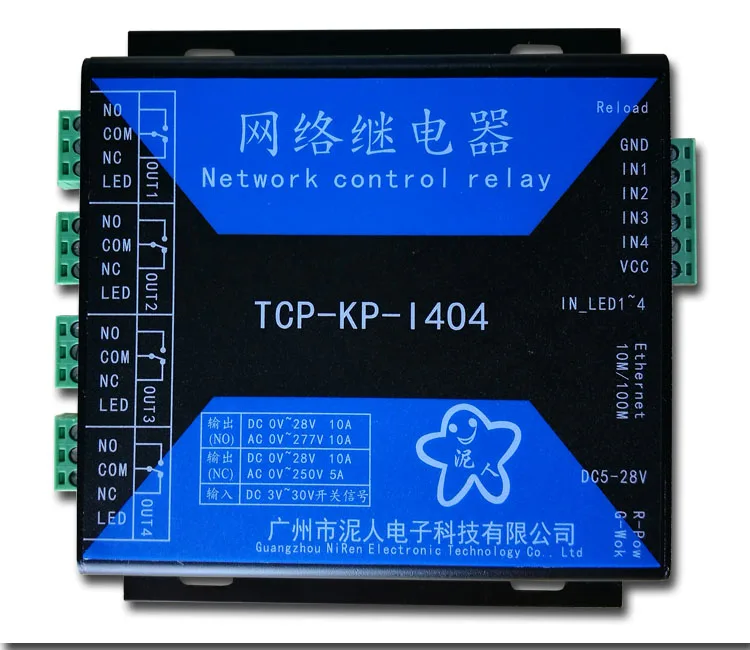

Output Interface

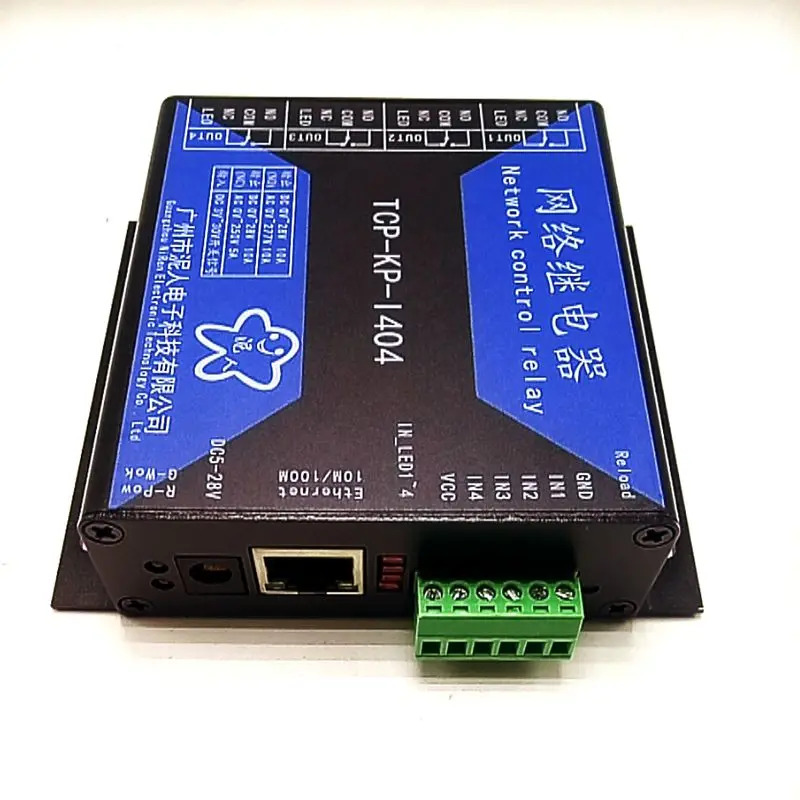

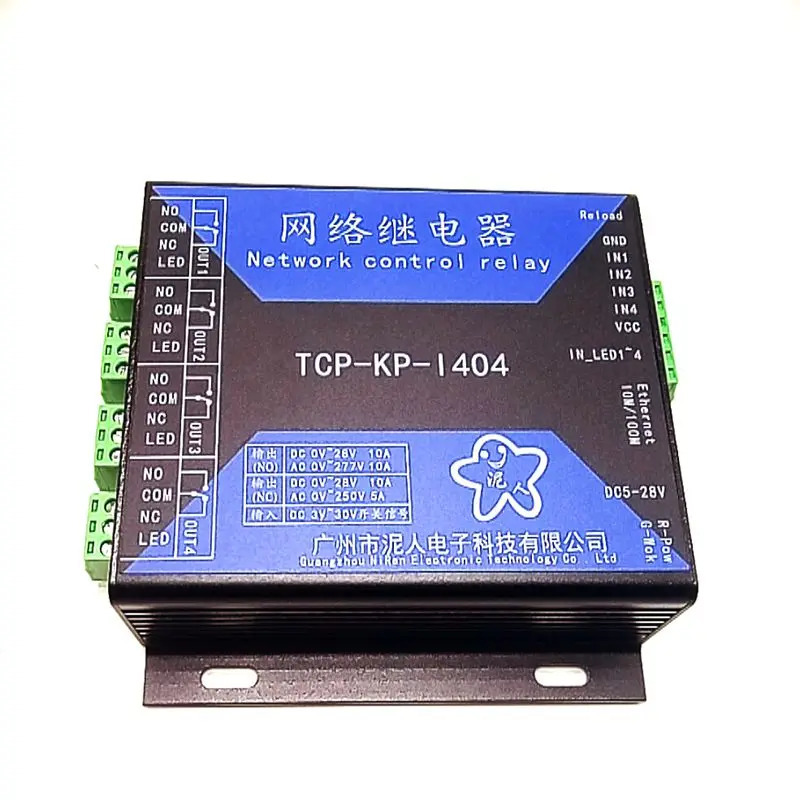

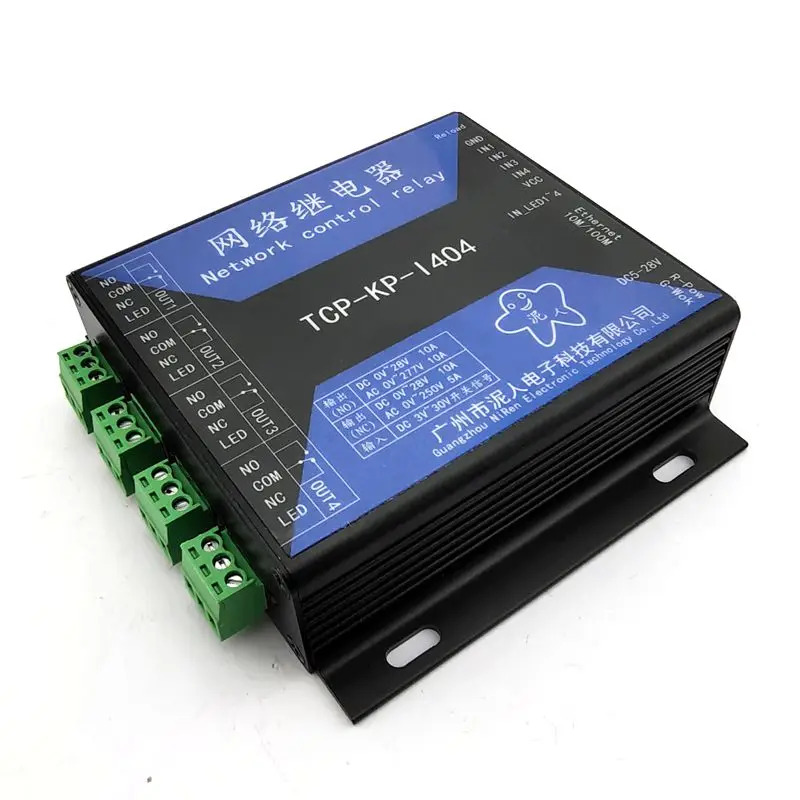

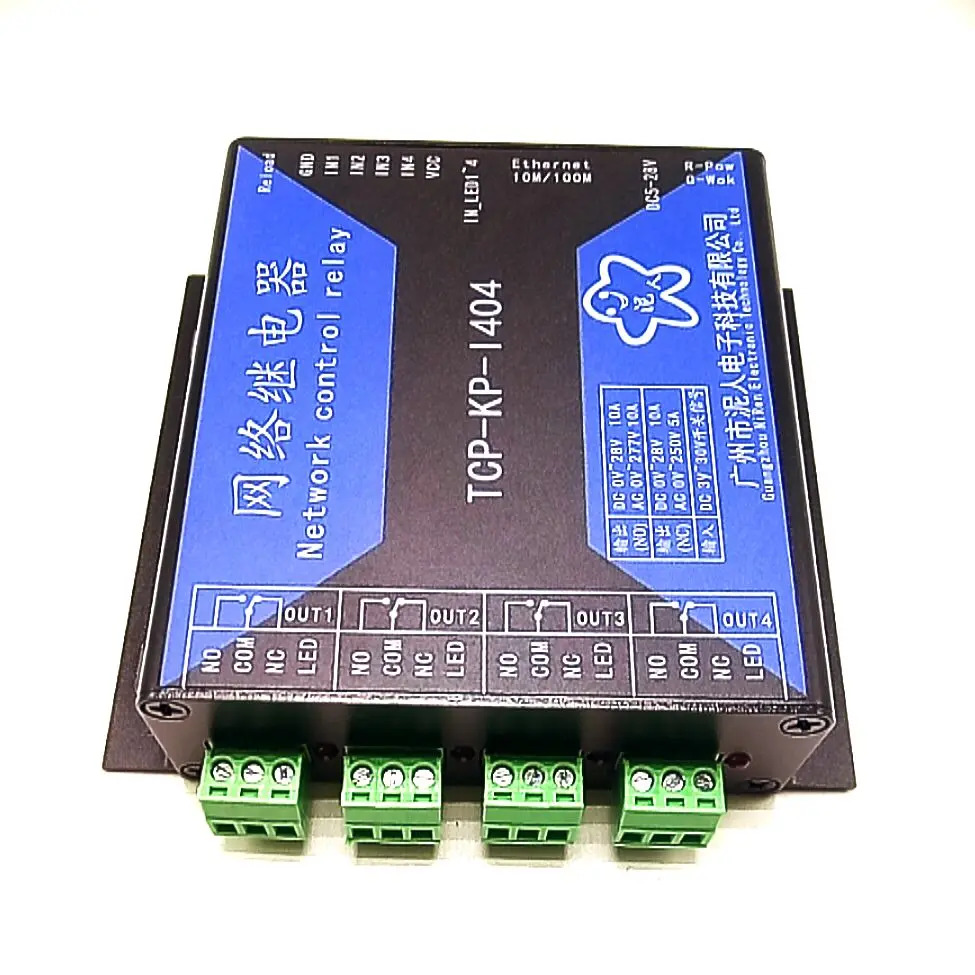

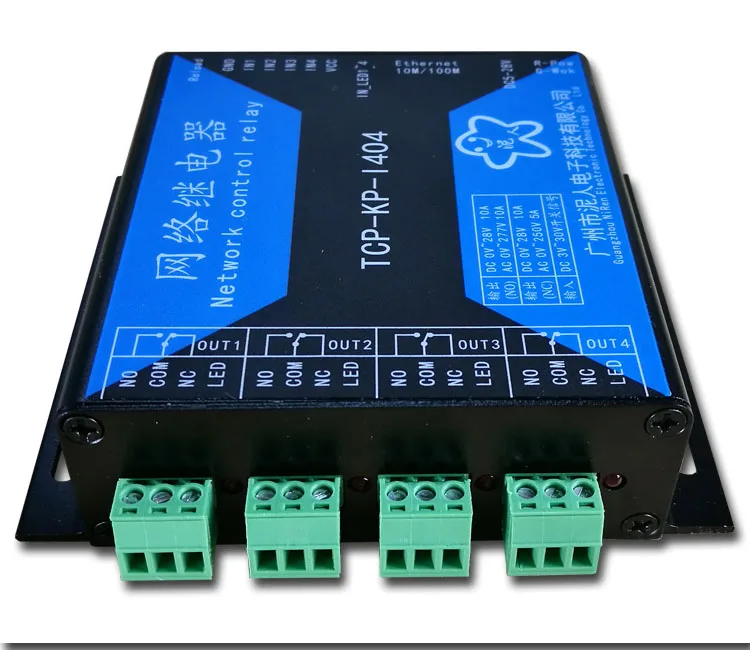

1. Interface specification: 3*3.81MM terminal Common (COM) normally open (NO) normally closed (NC)

2. Quantity: 4 roads

3. Attribute: dry contact (equivalent to switch, no voltage output)

4. Maximum contact load: AC 277V/10A DC 30V/10A

5. Control mode: network, input interface, timing

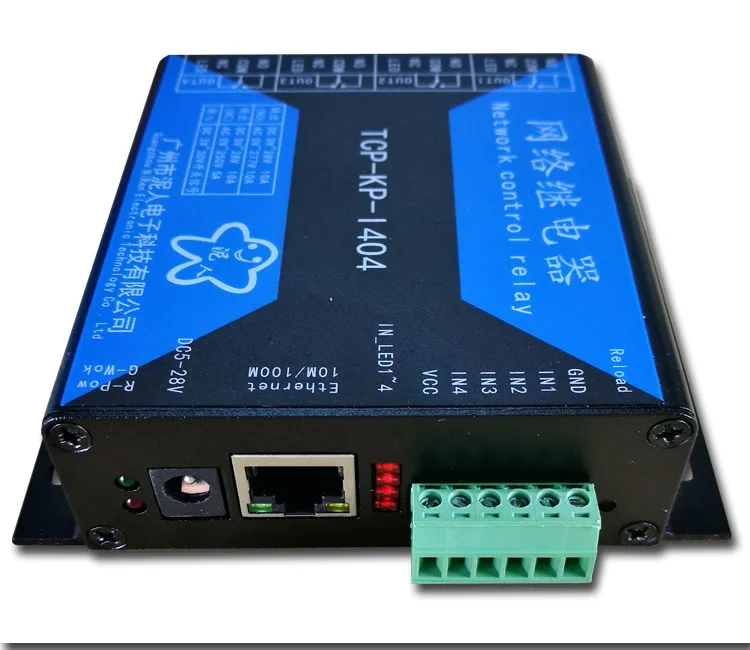

input interface

1. Interface specification: 6*3.81MM terminal

2. Quantity: 4 roads

3. Attributes: Wet contact (input power) dry contact (DC3~30V)

4. Protection: 1.5KV optical isolation

RJ45 network interface

1. Interface standard: RJ45, 8 pins

2. Socket port number: 1 by default, 5 in TCP_Server mode

3.LAN Ethernet: 10/100Mbps (adaptive)

4. Working mode: TCP_Client, TCP_Server, UDP, UDP_Server

5. Network protocols: IP, TCP, UDP, ARP, ICMP, IPV4, dynamic port, domain name resolution, etc.

6. Protection: 2KV electromagnetic isolation

Basic parameters

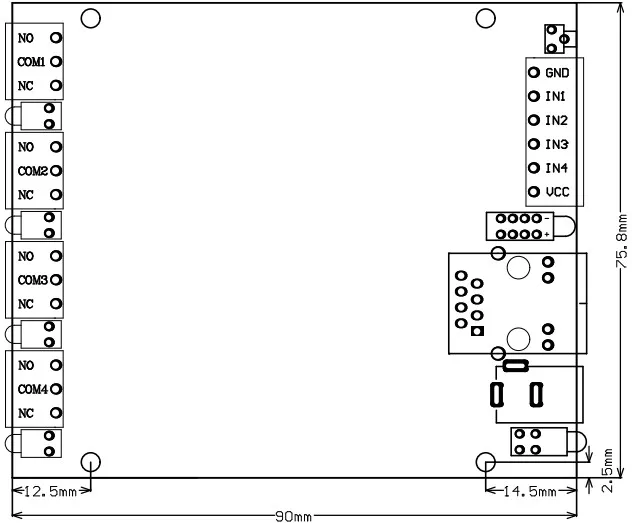

1. Size: with housing: 90L*104.4W*28.3H (mm). bare board 80L*42W*17.5H (mm)

2. Working voltage: DC5~28V

3. Working current: 120mA (MAX) @24V

4. Power consumption: ≤3W

5. Working temperature: -40 ° C ~ 85 ° C, industrial grade

6. Storage temperature: -65 ° C ~ 150 ° C, industrial grade

7. Working humidity: 10%~90%, relative humidity, no condensation.

Use the configuration software to manage the relay

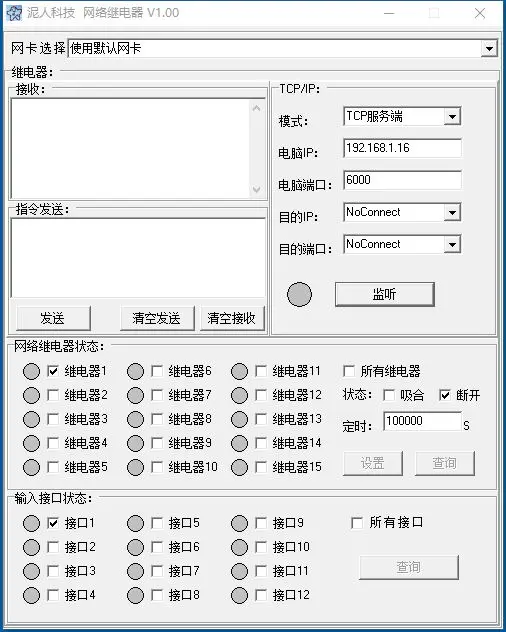

Configure the network parameters of the relay by configuring the software:

Monitor the status of the input interface by controlling the relay action through centralized management software: (software can be customized)

Secondary development

Customers can develop their own management software according to the needs of the project, and Cuiren Technology provides relevant secondary development materials.

1. Provide a complete control instruction manual. The customer only needs to write a TCP software. After the software establishes a SOCKET connection with the device, it can send a command control relay:

Test instructions:
instruction	description
AT	Test instructions
Control instruction
AT+STACHn	Query, set the output relay (DO) real-time status
AT+KPKEEP	Query, set relay status to save power
AT+OCCHn	Query input interface (DI) real-time status
AT+OCMOD	Query, set input (DI) interface status upload mode
AT+GANGCON	Query, set input and output linkage
Network instruction
AT+IP	Query, set the network IP address
AT+DHCP	Query, set DHCP mode
AT+GATEWAY	Query, set the gateway IP address
AT+MASK	Query, set the subnet mask.
AT+MAC	Query, set the network MAC address
AT+MODEL	Query, set the network port working mode
AT+PORT	Query, set the network port number
AT+DYNPORT	Query, set dynamic port
AT+DIP	Query, set the destination IP address
AT+DPORT	Query, set the network destination port number
AT+DNSEN	Query, set domain name resolution
AT+DOMAINNAME	Query, set the domain address
AT+DNSIP	Query, set the DNS server IP address
AT+DNSGETIP	Query the destination IP obtained through the DNS server
AT+LINKSTATn	Query network port connection status
AT+HEART	Query, set network heartbeat packet parameters
AT+THEARTDT	Query, set the content of the network heartbeat package
AT+TCPREG	Query, set the network registration package execution mechanism
AT+USRREG	Query, set the content of the network registration package
Other instructions
AT+WID	Query, set device ID
AT+NAME	Query, set the device name
AT+DEFAULT	The device parameters are restored to factory defaults and the device is restarted.
AT+RST	Device software reset, the effect is equivalent to re-powering
Expansion instruction
AT+TIME	Query, set system time
AT+TIMESW	Query, set, delete relay timing action time
AT+UART	Query, set serial port (RS485) parameters
AT+UARTMOD	Query, set serial port (RS485) working mode
AT+SEND	Network receiving, sending serial port (RS485) data

2. Provide a test software source code written in C++ for user reference, shortening the user's secondary development cycle.

3. The relay can access the remote server through a fixed IP or domain name. The user can develop software to manage the relay on the remote server to realize platform control:

Personalized function customization

1. The user can customize the firmware of the relay, such as: modify the command format, modify the relay function. Custom firmware does not need to send the device back to the factory, just upgrade the firmware online via the network.
