Product parameter:

Current consumption: ± 8mA

Input voltage: DC 5V

Output mode: NPN

Output current: ≤ 100mA

Response time: 500mS

Working ambient temperature: - 20~75 ° C

Inductive thickness (sensitivity) range: ≤ 5mm

Ripple and noise voltage: ≤ 1000mvpp

Liquid level accuracy: ± 3mm

Temperature: ≤ 100%

Environmental protection certification: ROHS-2.0

Safety standard certification: CE

Color: as shown

Packing: 1Pc Level Detector

Applicable container range:

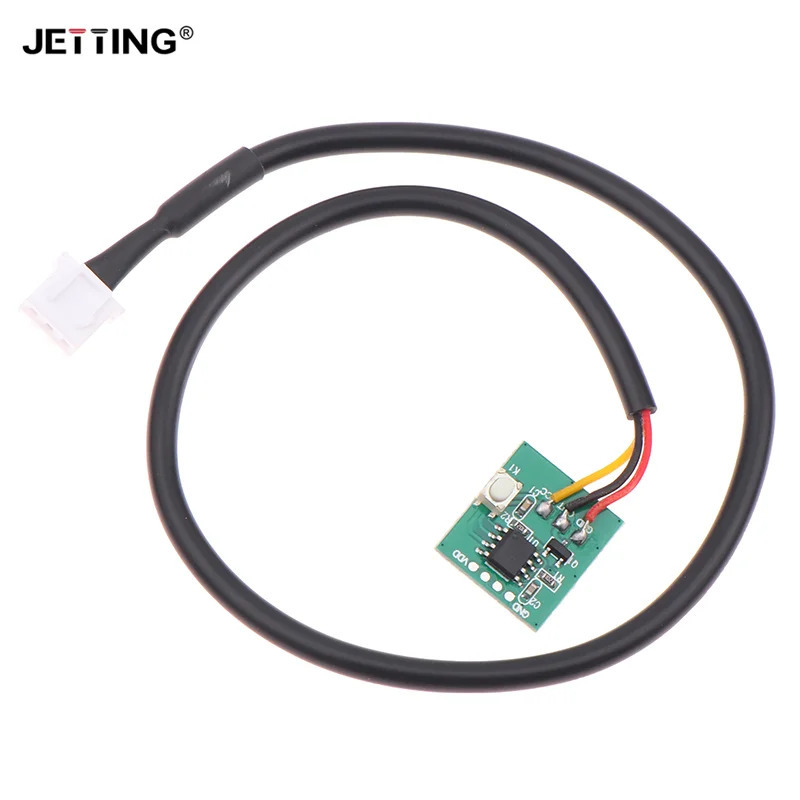

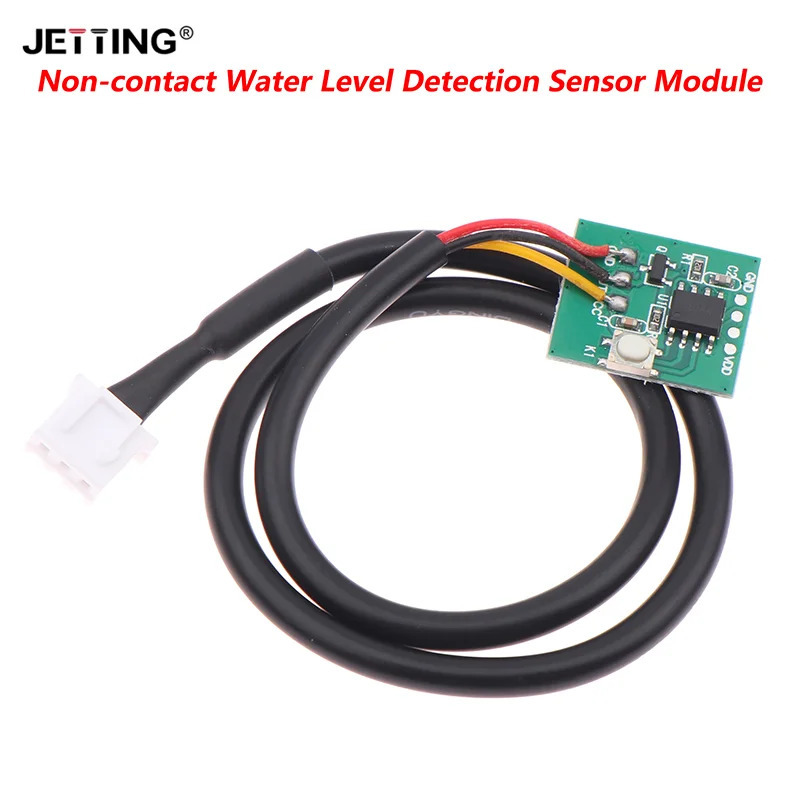

Non-contact liquid level sensor module, suitable for the outer wall of non-metallic containers without direct contact with liquid, strong compatibility, penetrating various non-metallic containers, such as plastic, glass, ceramic and other containers, and the sensing wall thickness can reach 5mm.

Paste installation method:

Paste installation can be directly pasted on the outer wall of plastic containers.

Paste materials can be glass glue, 704 silicone, waterproof 3M double-sided tape, etc.

Notes:

1. Double-sided tape made of foam cotton cannot be used

2. The container material must be insulating material.

3. Try to use materials with uniform material, no air interlayer, no bubbles, no water absorption, and dielectric constants that are not easy to change as containers.

1. Non-Contact: The non-contact water level detection sensor does not need to directly contact the liquid, which can effectively avoid physical damage such as corrosion and wear, and improve the stability and service life of the equipment.

2. High precision: This sensor can provide high-precision water level measurement with small error, which can meet the needs of various precision measurements.

Good protective performance: Because it has no direct contact with the liquid, the non-contact water level detection sensor usually has excellent protective performance, such as waterproof, anti-corrosion and so on.

4. Easy to install and maintain: The design is simple, installation and maintenance are relatively easy, and no complicated equipment and personnel operations are required, which greatly reduces operating costs.

5. Extensive application: The non-contact water level detection sensor can work in various harsh environments, such as liquids containing impurities, high or low temperature environments, and chemical environments with difficult reactions. It has strong adaptability and broad application prospects.

Note:

1.Please allow 1-3cm differs due to manual measurement.

2.Due to the different monitor and light effect, the actual color may be a slightly different from the picture color.
